385316140 385311462 RV Toilet Flush Seal Kit Toilet Rubber Ball Bowl Gasket, Fits for Dometic/Sealand/Mansfield/VacuFlush and Travel Trailer RV Camper/Marine Toilet

【SUPPORTED MODELS PARTIAL LISTED】 DOME-TIC / SEALAND: 506+, 511H, 547+, 548+, 706, 709, 748, 749 806, 808, 847, 848, 1147, 1148, 2010, 2011 5006, 5047, 5048, 5049,EcoVac 146-149 VACUFLUSH: VacuFlush 168, VacuFlush 606, VacuFlush 647 VacuFlush 648, VacuFlush 1006, VacuFlush 1008, VacuFlush 1047 VacuFlush 1048, Vacuflush 1049, VacuFlush 1106, VacuFlush 5146 VauFlush 5148, VacuFlush 5149 【WARM NOTE：Does Not Replace Seal on: 300, 310, 320 series Dome-tic toilets】 【Installation Steps:】 1.Turn off the water supply 2.Press the flush petal and drain water from toilet bowl, remove pedestal cover 3.Loosen stainless steel band and remove plastic half clamps that hold china bowl and plastic base together 4.Tilt China bowl forward,grasp vacuum breaker attached to back of toilet and pull it out off toilet.Set toilet bowl aside 5.Remove both old seals and place new seals with TISH SIDE UP on top of thin seal with raised circle of thin seal protruding up through center of large disc 6.Place seal and disk assembly on top of flush ball with TISH SIDE UP showing. Align notch on edge of large disc with pin on edge of base 7.Put china bowl back on toilet base, aligning notch with pin on base, and centering the bowl outlet over the flush ball. Re-insert vacuum breaker into back of toilet, pushing it all the way into the rubber sealing grommet 8.Re-install plastic half clamps under loosend steel band, making sure tabs interlocks at center front of toilet. There will be a small gap at rear of toilet 9.Tighten stainless steel band clamp to a minimum torque of 65 pounds 10.Reinstall pedestal cover and turn on water supply

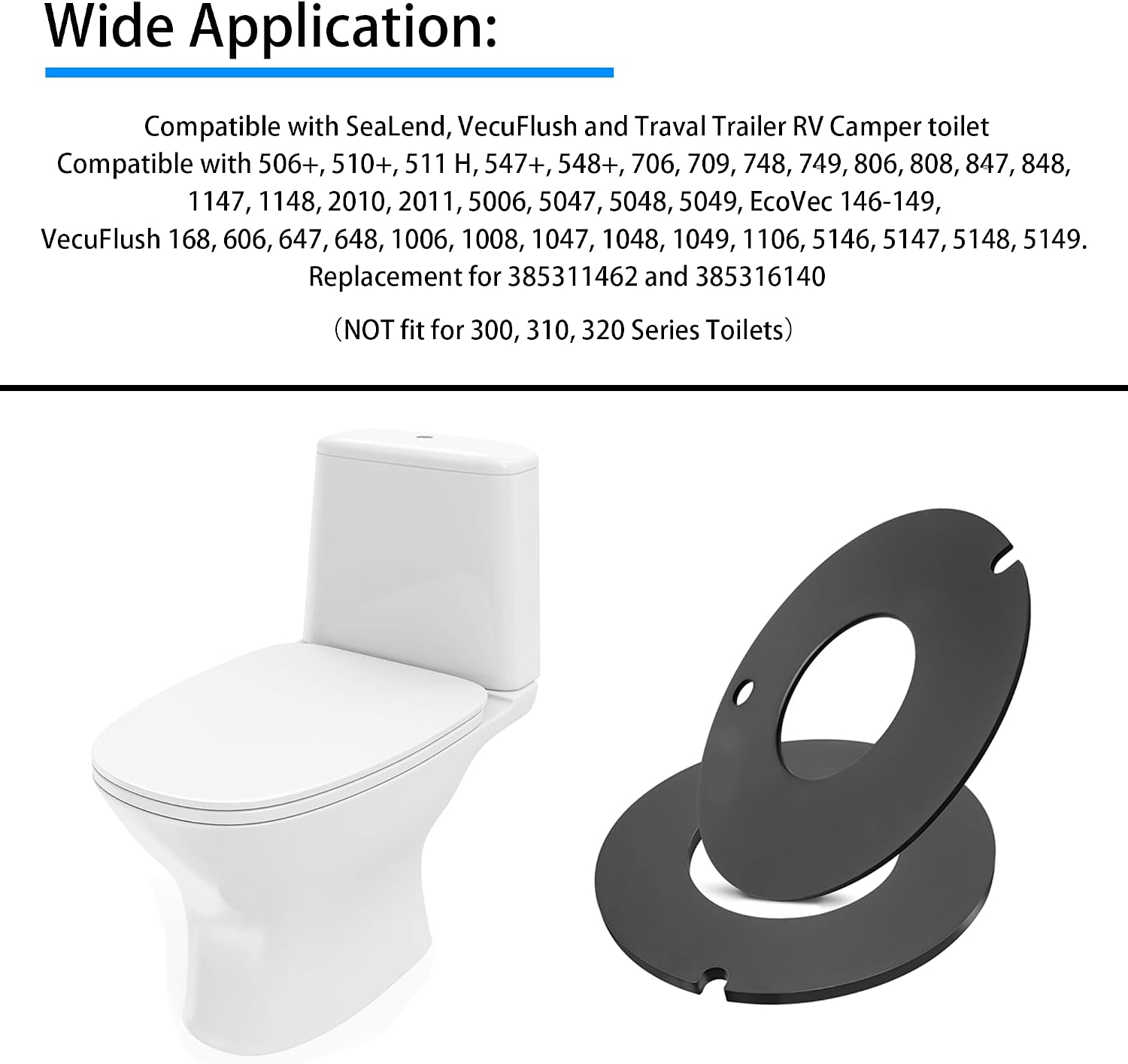

• Wide Application: The 385311462 RV Toilet Seal Kit is Compatible with SeaLend, VecuFlush and Traval Trailer RV Camper toilet. Compatible with 506+, 510+, 511 H, 547+, 548+, 706, 709, 748, 749, 806, 808, 847, 848, 1147, 1148, 2010, 2011, 5006, 5047, 5048, 5049, EcoVec 146-149, VecuFlush 168, 606, 647, 648, 1006, 1008, 1047, 1048, 1049, 1106, 5146, 5147, 5148, 5149. Replacement for 385311462 and 385316140. DOES NOT fit for 300, 310, 320 Series Toilets
• RV Toilet Flush Seal Kit: Made of Durable Rubber to Ensure High Performance,Soft,Durable,Anti-Friction,Good Tightness to Ensure Seal Properly,No Worry about Leaking.And it Keeps the Water in Place and the Stink Out,Save Money on a New Toilet
• Suitable Brands: Fits for Most Pedal-Flush Do-Metic, SeaLand, VacuFlush and Traveler Brand Toilets. DO NOT Include Overflow Holes Inside the Toilet Bowl
• Easy to Install: Turn off the Water Supply, Remove the Old RV Toilet Flush Seal, Clean the Edge of the RV Toilet, Put the Part 385311462 Thick Seal First and the Part 385316140 Later; Check for Leaks After Installation
• Product Dimensions: Outer Diameter: 7"; Inner Diameter: 3.8"; Thickness: 0.2"
• Package Includes: You Will Receive 385311462 and 385316140 RV Toilet Rubber Seal
